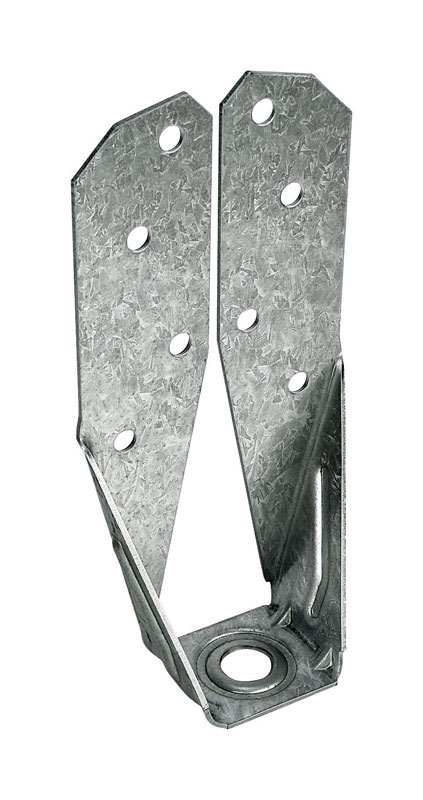

Simpson Strong-Tie ZMax 7.03 in. H X 3.25 in. W 14 Ga. Steel Deck Tension Tie
Summary
DECK TENSION TIE DTT2ZPrice
$8.99
- Product Code
- 5608724
Qty
Not Purchasable:
Description
DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load-rated as a hold down for light-duty shear walls and braced-wall panel applications. The DTT2 can be used to satisfy the IRC provision for a 1500 lbs. lateral load connection at two locations per deck. Additionally, the DTT2 has been tested and evaluated in deck guardrail post applications to resist the code-specified lateral forces at the top of railing assemblies. The DTT2 is also available with longer 2-1/2 inch strong-drive SDS heavy-duty connector screws (model DTT2Z-SDS2.5) to achieve higher loads when needed. The DTT2 fastens easily to the wide face of a single or double 2x using Simpson Strong-Tie strong-drive SDS heavy-duty Connector screws (included) and accepts a 1/2 inch diameter machine bolt or anchor bolt.Properties
- Feature 1 Text
- Feature 2 Text
- Feature 3 Text
- Feature 4 Text
- Feature 5 Text
- Feature 6 Text
- Feature 7 Text
- Feature 8 Text
- Feature 9 Text
- Feature 10 Text
- Proposition 65 Warning
- What's Incuded
- Default Base SKU
- Paint Code
- Old Default Base SKU
- Brand Name
- Simpson Strong-Tie
- Sub Brand
- ZMax
- Replacement Part SKUs
- Accessory SKUs
- Local SKU Store SKUs
- 5608724
- Local SKU Available Stores
- ALL
Measurements
- Weight
- 0.7 lbs
- 986
- 1.8 in
- Width
- 3.3 in
- Height
- 7.3 in
